| PARAMETER |
SPECIFICATION |
| Input Voltage |
230V ±10% AC, 50Hz, Single Phase |
| Output Power |
|
| Maximum Output Voltage |
|
| Maximum Output Power |
| 80mA at 44kV |
100mA at 60kV |
| 40mA at 80kV |
80mA at 75kV |
| 30mA at 110kV |
50mA at 120kV |
|
| HF Generator Frequency |
100kHz |
| Protections |
Over Voltage, Over Current, Over Temperature, Filament Fault, Earth Fault, Rotor Fault, Inverter Fault |
| Application |
Suitable for Fluoroscopy and Radiography |
| Fluoroscopy kV Range |
| 40kV to 110kV in 70 steps |
40kV to 120kV in 80 steps |
|
| Fluoroscopy mA Range |
|
| Radiography kV Range |
| 40kV to 110kV in 70 steps |
40kV to 120kV in 80 steps |
|
| Radiography mA Range |
| 20mA to 80mA |
20mA to 100mA |
|
| mAs |
0.1 to 200mAs in 31 steps
|
| Tube Compatibility |
|
| Remote Control User Interface |
Keyboard or Touch screen tablet with microcontroller-based control |

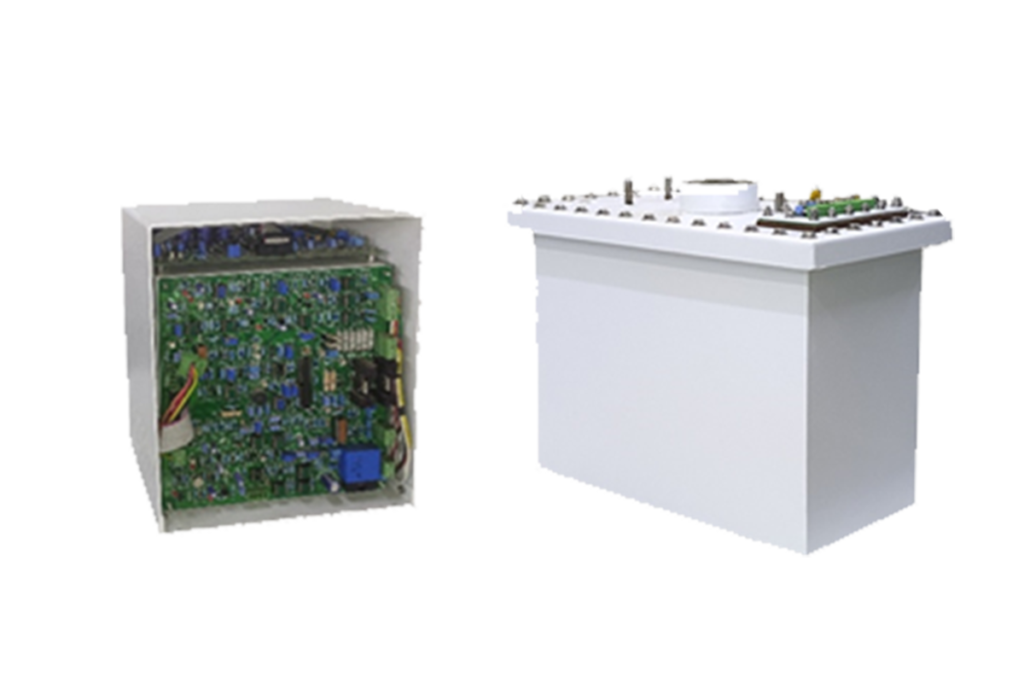

| Housing |
Monoblock |
|
HF Inverter |
|
| Contains high voltage transformer, X-ray tube & filament transformers floating on high voltage |
| Contains inverter, control cards, transformers and other interlocks (filament card and transformer supplied separately) |
|
| Size (L x W x H) |
Monoblock |
|
HF Inverter |
|
| 311mm x 147mm x 211mm |
311mm x 156mm x 247mm |
|
| 238mm x 238mm x 220mm |
|
| Weight |
Monoblock |
|
HF Inverter |
|
|
