HIGH VOLTAGE AC SQUARE WAVE POWER SUPPLY
UPTO 20KV, 1KW
HIGH VOLTAGE AC SQUARE WAVE POWER SUPPLY
Upto 20kV, 1kW

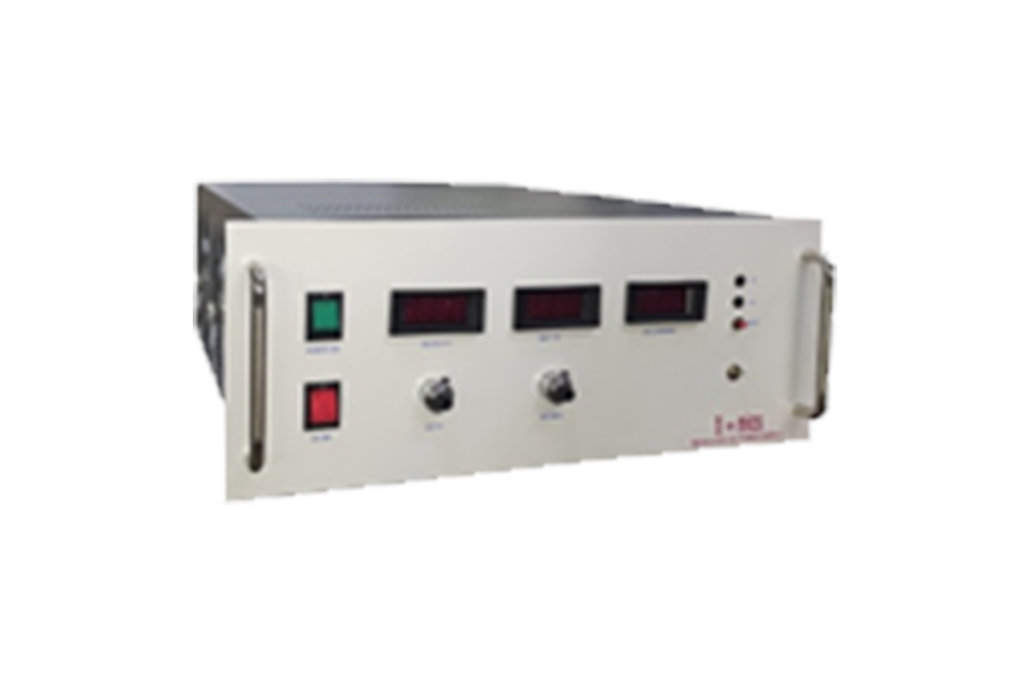

This series of power supplies generate high voltage AC square wave output at variable amplitude & frequency and mainly find application in plasma research. These units are housed in compact 19’’ racks to give a regulated output.
Download Datasheet
TECHNICAL SPECIFICATIONS
| PARAMETER | SPECIFICATION |
|---|---|
| Input Voltage | 230V ±10% AC, 50Hz, single phase |
| Output Voltage Range* | Upto 20kV peak to peak |
| Output Power | Upto 1kW peak to peak |
| Output Waveform | AC Square wave |
| Line Regulation | ±1% for ±10% variation in input voltage |
| Frequency Range | 10kHz to 50kHz |
| Regulating Mode | Constant voltage |
| Voltage & Frequency Control | By 10-turn potentiometers on the front panel |
| Protections | Against over load, short-circuit and arc During short circuit, power supply trips & to be reset manually |
| Front Panel | Power ON/OFF switch with indication HV ON/OFF switch with indication 3½ digit voltage, frequency and current meters 10-turn potentiometers for voltage and frequency control LED indication for fault trip Push button for trip reset |
| Back Panel | Socket for mains input with 250V, 10A 3 conductor power cord of 1.5 meters Fuse holder with fuse Terminal for HV output with 10ft of detachable high voltage cable Stud for grounding the unit |
| Cabinet | 19” rack |
*Optional. To be specified by the user.
