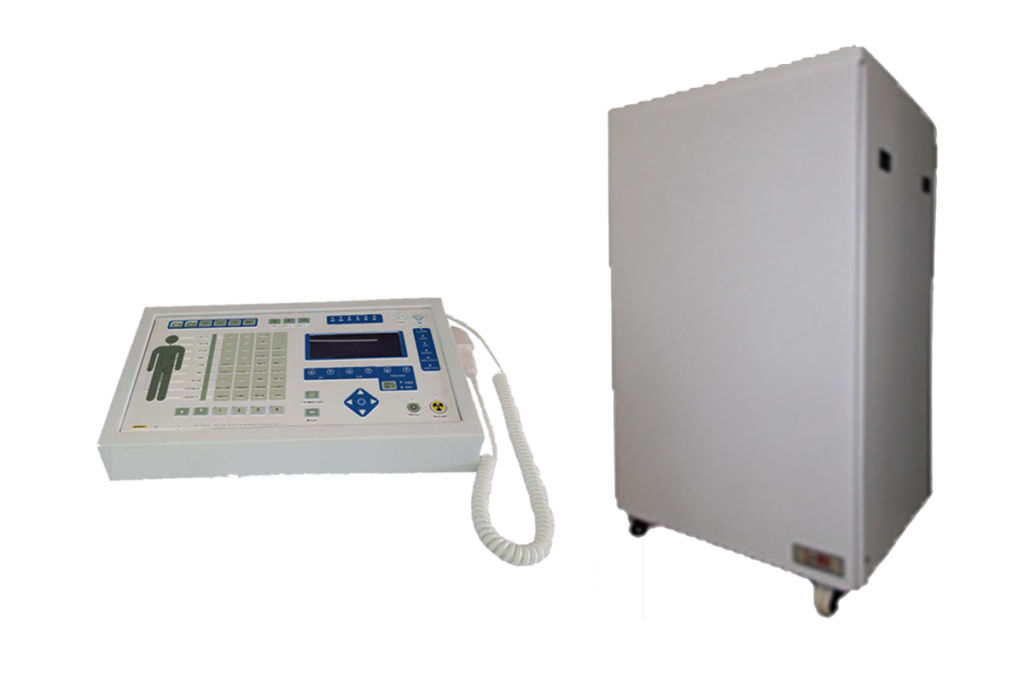

HF X-RAY GENERATOR FOR FIXED X-RAY (R/F)
XR15(15kW) / XR20(20kW) / XR32(kW) / XR40(40kW) / XR50(50kW) / XR65(65kW) / XR80(80kW)
HF X-RAY GENERATOR FOR FIXED X-RAY MACHINE
XR15(15kW) / XR20(20kW) / XR32(kW) / XR40(40kW) / XR50(50kW) / XR65(65kW) / XR80(80kW)
IONICS offers an extensive range of HF generators that comes in Radiography and Fluroscopy modes. The high frequency output allows for lower kV per exposure, shorter exposure and superior imaging.
Download Datasheet
TECHNICAL SPECIFICATIONS
| PARAMETER | SPECIFICATION | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IHVP-60 | IHVP-60 | ||||||||||||||||||||
| Radiographic kV Range | 40kV DC to 125kV DC | ||||||||||||||||||||
| Radiographic mA Range | 25mA to 500mA | ||||||||||||||||||||
| Radiographic mAs Range | 0.25 to 500mAs | ||||||||||||||||||||
| Fluoroscopic kV Range | 40kV DC to 100kV DC | ||||||||||||||||||||
| Fluoroscopic mA Range | 0.5 to 5mA | ||||||||||||||||||||
| Maximum Output Power |
|
||||||||||||||||||||
| Application | Radiography & Fluoroscopy (optional) | ||||||||||||||||||||
| HF Generator Frequency | 40kHz | ||||||||||||||||||||
| Protections | Over Voltage, Over Current, Over Temperature, Earth Fault, Filament Fault, Rotor Fault and Single Phase | ||||||||||||||||||||
| AEC | Optional | ||||||||||||||||||||
| Tube Compatibility | Toshiba E7239 / E7242 / (E7252 for 50kW) | ||||||||||||||||||||
| Remote Control | Touch Screen tablet with microcontroller-based control / Keyboard | ||||||||||||||||||||
| Housing (LxWxH) in MM | MS cabinet size (excluding nylon wheels) (480 x 430 x 810 for RF unit) |
