| PARAMETER |
SPECIFICATION |
| Input Voltage |
230V ±10% A C, 50Hz, single phase |
| No. of Output |
2 |
| Output Voltage1 |
| Output Voltage2 |
|
| 125kV |
160kV |
220kV |
| 0 to +62.5kV DC |
0 to +80kV DC |
0 to +110kV DC |
| 0 to +62.5kV DC |
0 to +80kV DC |
0 to +110kV DC |
|
| Output Current |
0 to 5mA |
Filament Voltage and Current
As per tube selection by OEM |
As per tube selection by OEM |
| Polarity |
Positive and negative |
| Line Regulation |
<0.1% for 10% variation in input voltage |
| Load Regulation |
<0.5% for 10% load variation (tube current) |
| Mode of Operation |
Constant voltage-constant current (x-ray anode current) |
| Protections |
Overload, short-circuit and arc |
| Topology |
SMPS |
| Cable and Connectors |
To be supplied by the OEM |
|
|

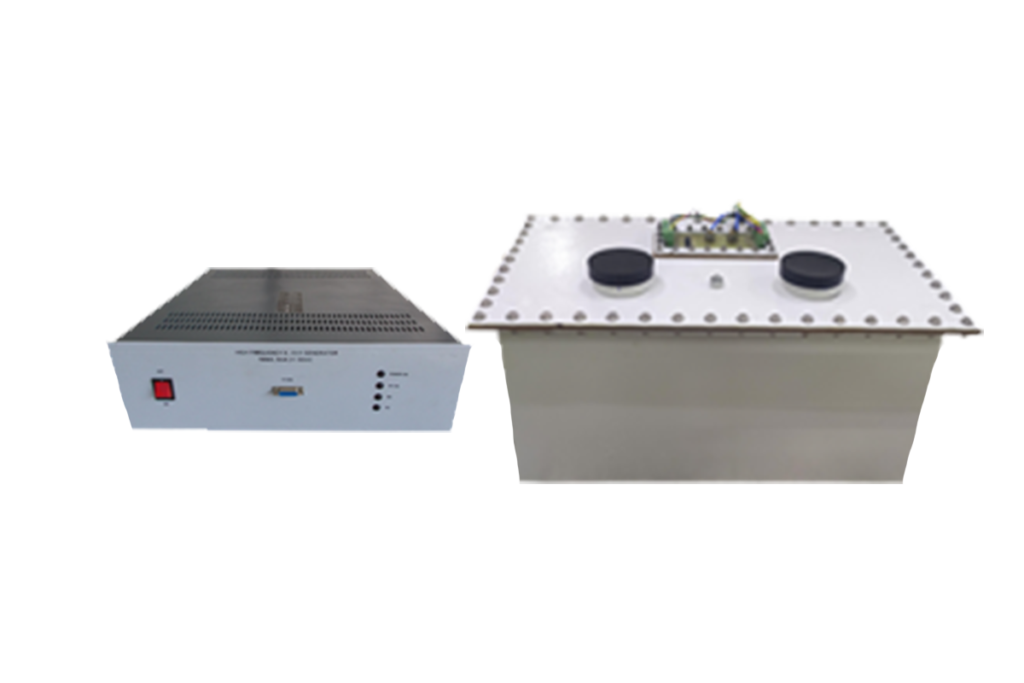

| MS tank (550mmx329mmx246mm) |
| 19” Rack (440mmx458mmx142mm) |
|
