HIGH CURRENT PULSED GENERATOR
5V, 2000A DC PULSED
HIGH CURRENT PULSED GENERATOR
5V, 2000A

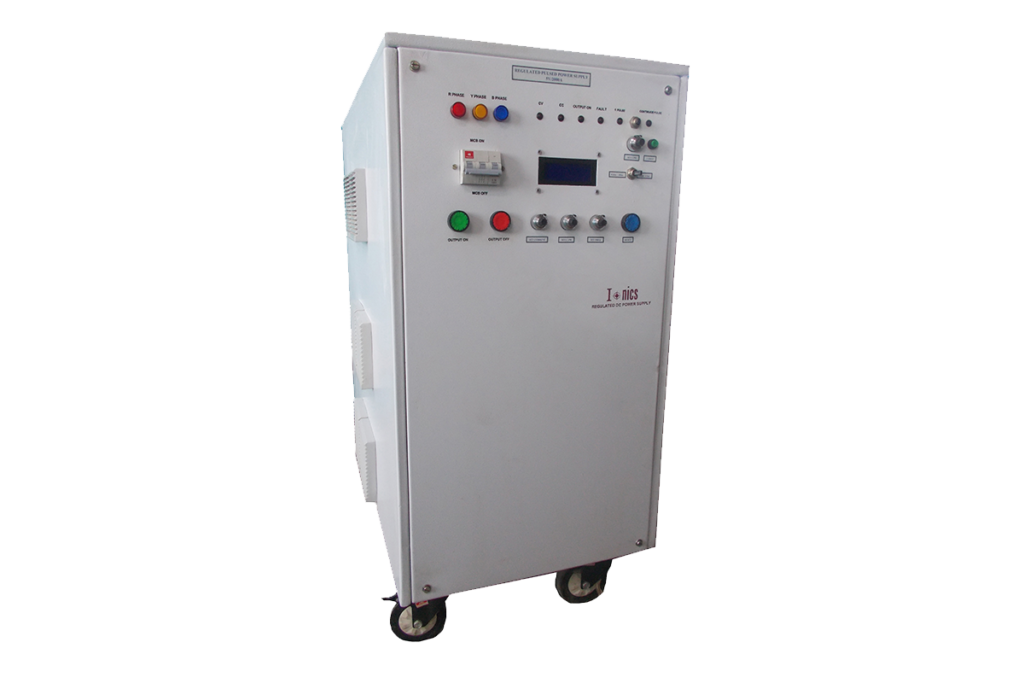

This high current pulsed generator was designed and developed for research purpose in Mechanical and Aerospace Engineering.
Download Datasheet
TECHNICAL SPECIFICATIONS
| PARAMETER | SPECIFICATION |
|---|---|
| Input Voltage | 415V ±10% AC, 50Hz, three phase |
| Output Voltage (In Pulsed mode) | 5Vmax |
| Output Current Range | 0 to 2000A |
| Frequency Range | 0.2Hz to 100Hz variable |
| Frequency Control Range | Minimum to maximum of rated frequency range |
| Duty Cycle Control Range | 0 to 50% (10ms max) |
| Maximum Pulse ON Time | 1 to 10ms adjustable |
| Polarity | Positive |
| Mode of Operation | Pulsed. With a provision for single shot |
| Regulating Mode | Constant current |
| Regulation | ≤ 1%+IGBT drop |
| Controls Voltage Current Frequency Duty Cycle |
By 10-turn potentiometers on the front panel |
| Waveform reading | Terminals provided to read the output voltage and current waveform |
| Front Panel | Mains ON/OFF switch Power ON/OFF Switch Single alphanumeric display for peak voltage, peak current, frequency and duty cycle 10 turn potentiometers for voltage, current, frequency & duty cycle control Indications for 3 phase ON/OFF Faulty indications Push buttons for trip reset |
| Back Panel | Terminal block for 3 hhase mains input
Fuse holder with fuse Buss bar terminals for high current output Stud for grounding the unit |
| Topology | PWM-controlled switch mode |
| Regulating Device | IGBT |
| Cabinet | MS cabinet, powder coated |
